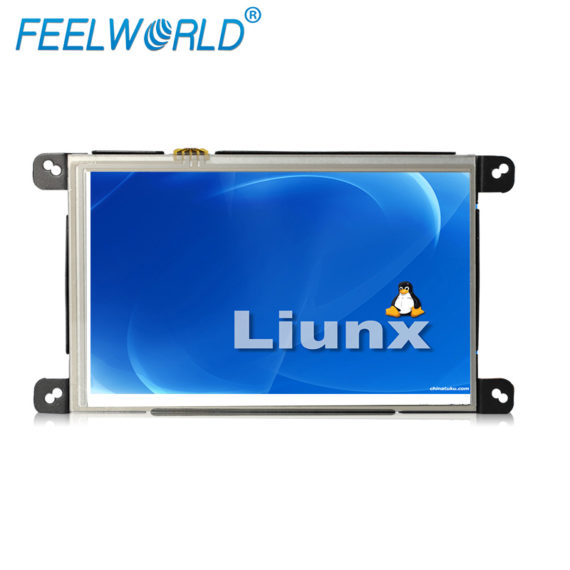

Feelworld wince 6.0 8 inch touch screen all in one pc
$364
Feelworld 8 inch touch screen all in one pc support wince 6.0
FEELWORLD new product Open Frame Panel PC with bezel-less display provides design flexibility for customers without any limitation. Customers are provided with various innovative mounting options, such as open frame mount from both rear and front sides. Open Frame Panel PC has ultra slim appearances and can be easily integrated into a custom enclosure. Ideal for space-critical environments, Open Frame Panel PC is targeted at vertical market segments, inclusive of Industrial Control Machine,ATMs and vending machines in transportation stations and entertainment venues.
| Description | 8"Industrial Embedded Touch PC | ||
| Model No. | FW859PC | ||
| CPU | Samsung s3c 6410 | ||
| 667MHZ | |||
| Memory | DDRII SDRAM 256MB(MAX to 512MB) | ||
| Nand Flash | 2GB(MAX to 4GB) | ||
| LCD Screen | Resolution: 800×480 | ||
| Dot pitch: 0.0642(W) × 0.1790(H) mm | |||
| Brightness: 450 cd/m² | |||
| Contrast: 500:1 | |||
| View Angle: 70/70 (L/R) 50/70(U/D) | |||
| Operation System | WINDOW CE 6.0 | ||
| Features: | Mini USB Input | USB Device 2.0 input for PC | |
| Memory Card Insert | SD Card Insert,Max to 32G | ||
| WIFI(optional) | Wi-Fi RT2870 Wireless Adaptor,support IEEE802.11b/g(Standard)IEEE802.11g (6M/S) | ||
| Bluetooth(optional): | Bluetooth V2.0,2.4GHz for Data Transmission | ||
| Li-Battery(optional): | 7.4V 2500mAH; working Hour:4 hour | ||

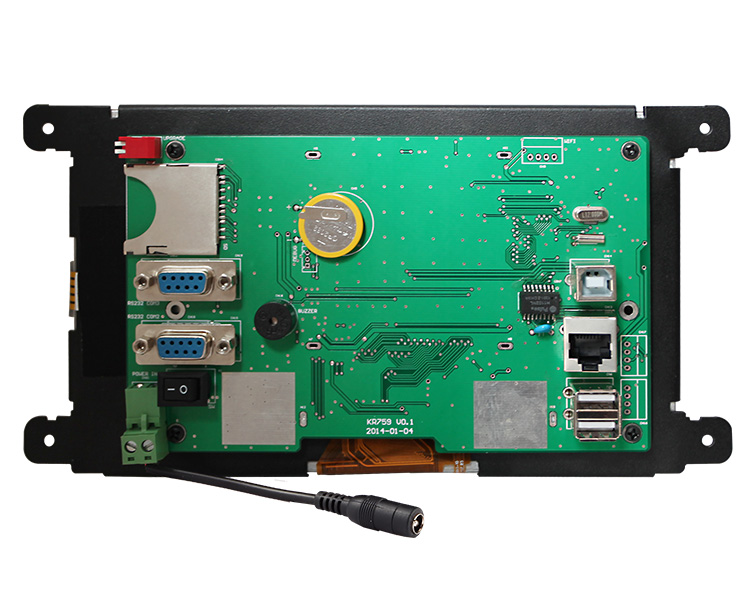

| Interface: | Mini USB 2.0(OTG) | 1 | |
| USB Host 1.1 | 2 | ||
| Lan Port RJ45 | 1 | ||
| RS232 | 2 | ||
| Support Visual Basic,EVC,Visual Studio,net frameworking 3.5 | |||
| Support keyboard, mouse and U disk | |||
| Support RS232 ,TTL(Optional) | |||
| Input Voltage: | 9V-24V | ||
| Max Consumption: | ≤8 W | ||
| working Temperature: | 0°C~ 50°C 0~85% RH | ||
| storage Temperature: | -10°C~ 60°C 0~75% RH | ||
| Unit Size: | 195Lx120Wx30H(mm) | ||
| Unit Weight: | 560g | ||
| Applications: | |||
| Industrial control system | |||
| Automotive media center, telematics and navigation | |||
| Ultra mobile PC | |||
| Personal Media Player | |||
| Home automation and media center | |||
| Order management system | |||
| E-education device | |||
| Advertising digital signature | |||
> Windows CE 6.0
> Support Visual Basic,EVC,Visual Studio,net framework 3.5
> USB HOST1.1(active synchronization)
> Support keyboard and mouse
> Addition:Reserved WIFI, Bluetooth, lithium circuit interface when designing PCBA (to achieve function)
> 3G,GPRS optional
> external USB camera optional
> external GPS optional
Applications:
> Industrial control system
> Automotive media center, telematics and navigation
> Ultra mobile PC
> Personal Media Player
> Home automation and media center
> Order management system
> E-education device
> Advertising digital signature
Additional Information
| Memory Capacity | ≤ 512MB |
|---|---|
| Hard Drive Capacity | Other |
