H96 Max X3 S905X3 TV box Android 9.0 dual band wifi 4GB/64GB smart 8K set top box

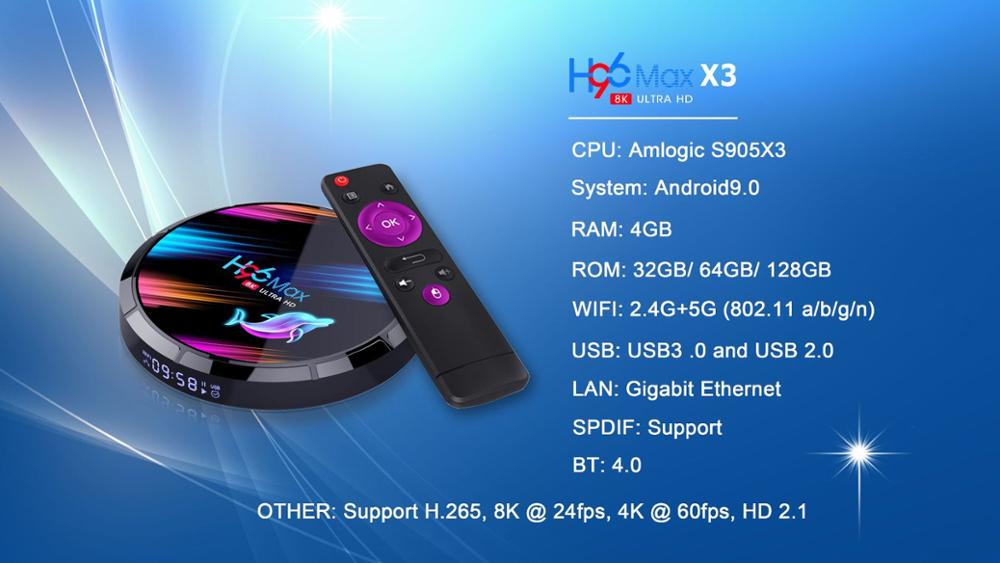

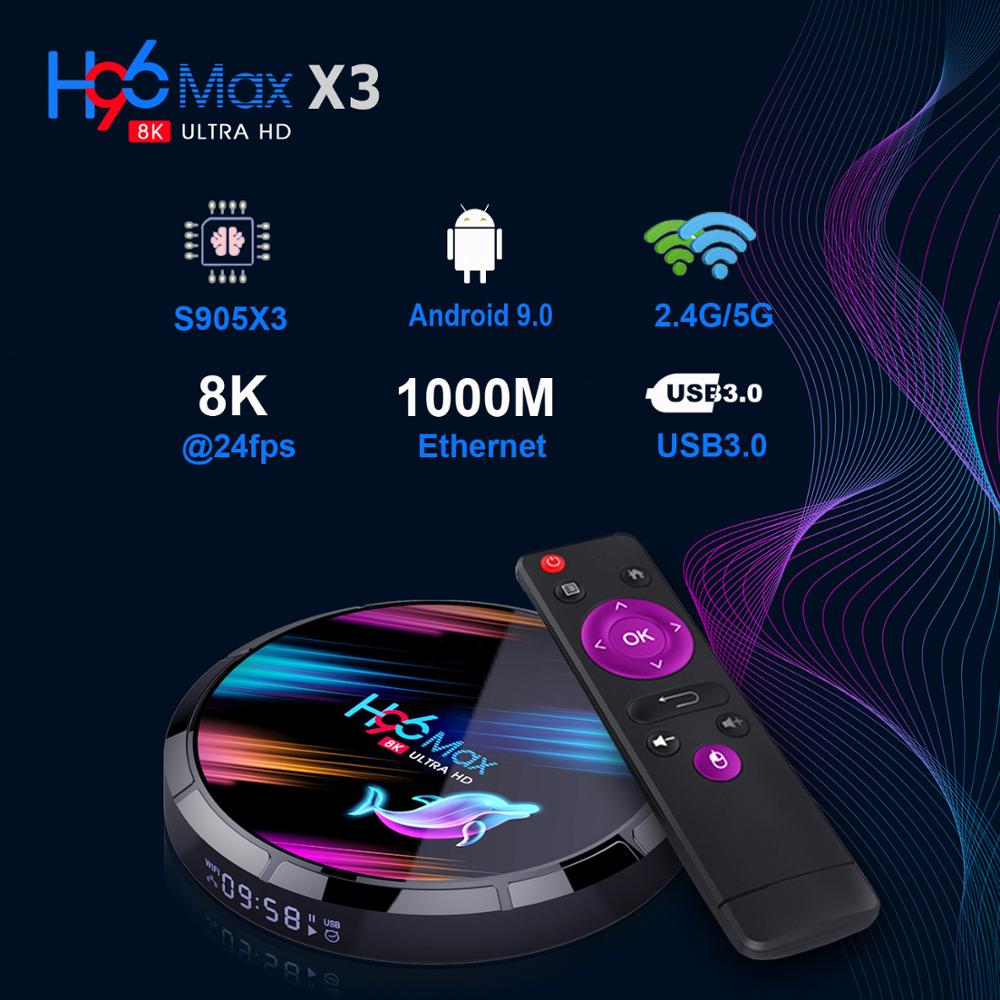

H96 Max X3-S905X3

System

CPU

Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU

GPU

G31™ MP2 GPU processor

Memory

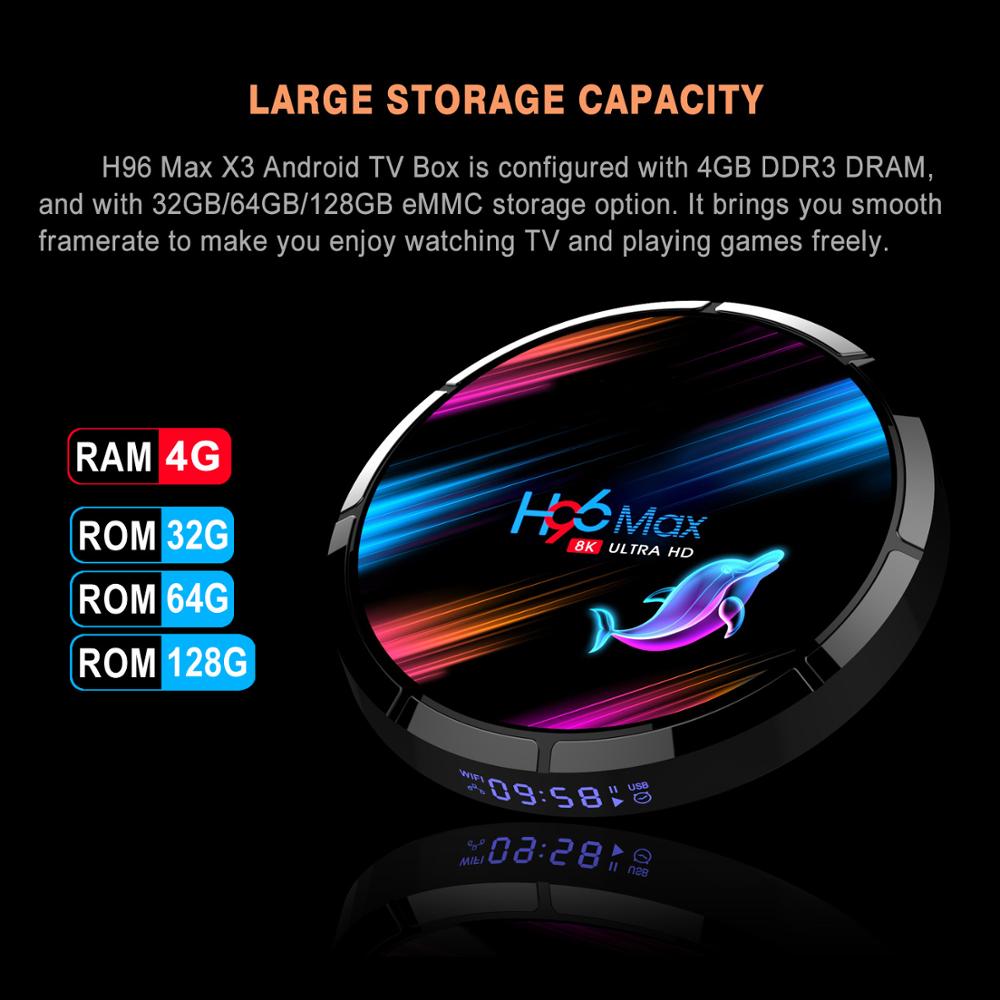

DDR3: 4GB

Flash

eMMC：32GB/ 64GB/ 128GB

WiFi

IEEE 802.11 a/b/g/n ; 2.4G / 5G

BT

BT 4.0 (Support Voice Remote)

Moudle

Plastic : Black Color

I/O

1*HDMI

HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output

1*AV OUT

480i/576i standard definition output

2*USB

1 * USB 3.0 ; 1*USB 2.0

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface;Support 100M/1000M

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

SPDIF

Support

1*DC

5V/2A

Power

DC 5V/2A；LED indicator，Working ：Blue;

Software

OS

Android 9.0

Video

? Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
? Support multi-video decoder up to 4x1080P@60fps
? Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
? Video/Picture Decoding
– VP9 Profile-2 up to 8Kx4K@24 fps
– H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
– AVS2-P2 Profile up to 8Kx4K@24 fps
– H.264 AVC HP@L5.1 up to 4Kx2K@30fps
– MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
– WMV/VC-1 SP/MP/AP up to 1080P@60fps
– AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
– MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
– MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
– RealVideo 8/9/10 up to 1080P@60fps
– Multiple language and multiple format sub-title video support
– MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
– Supports JPEG thumbnail, scaling, rotation and transition effects
– Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x
32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM


HD JPEG、BMP、GIF、PNG、TIF

Language

English French German Spanish Italian etc multilateral languages

Appliactions

Online

Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.

Apps

Apps download freely form android market、amazon app store etc.

Medium

Local Media playback,Support HDD, U Disck ,TF Card .

Talk online

Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc

Others

Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

Packing：

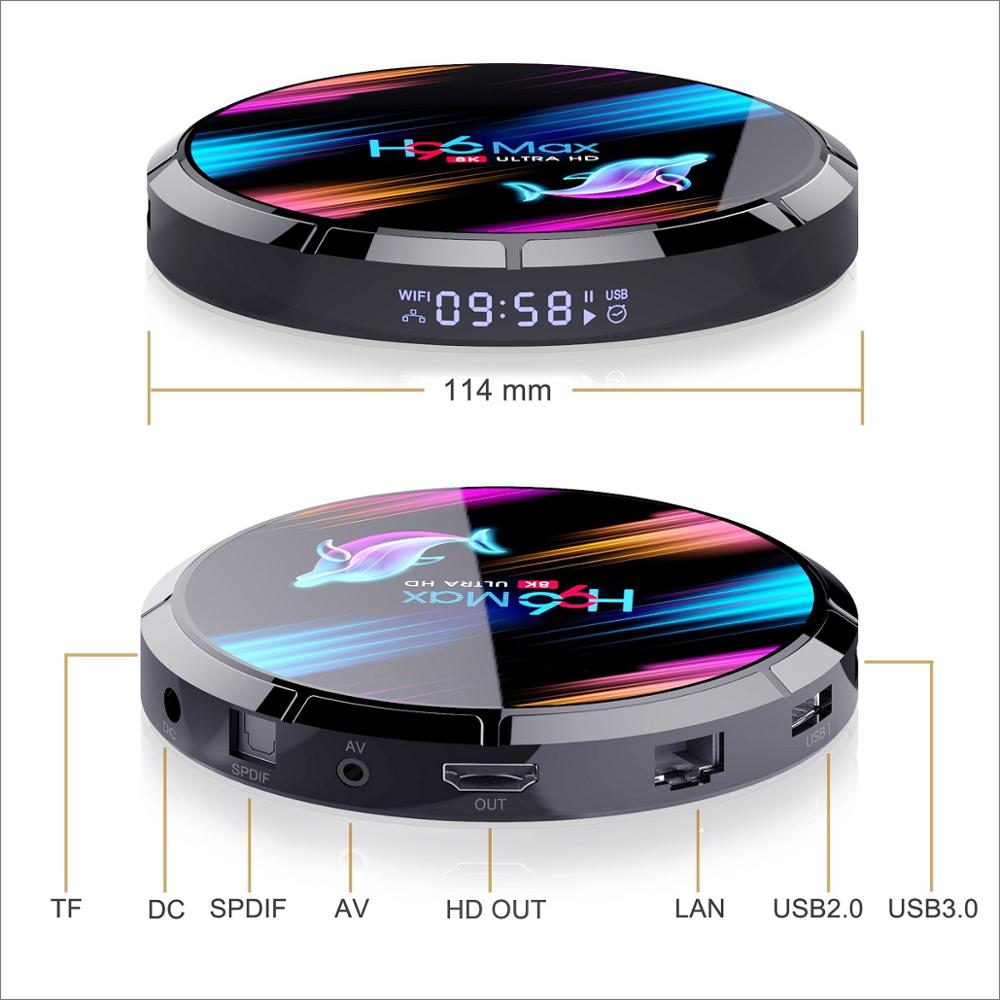

Product dimension:114*21

Qty per unit packing:1pc

Unit packing: (LxWxH):(MM)

Unit packing (G.W.):0.4KG

Export carton (WxHxL):（MM）

Export carton (G.W.):8KG

Qty per export carton:20PCS

Accessories ：

1、HDMI cable *1

2、IR Remote *1

3、User Manual *1

4、Package box *1

5、Power adapter *1
