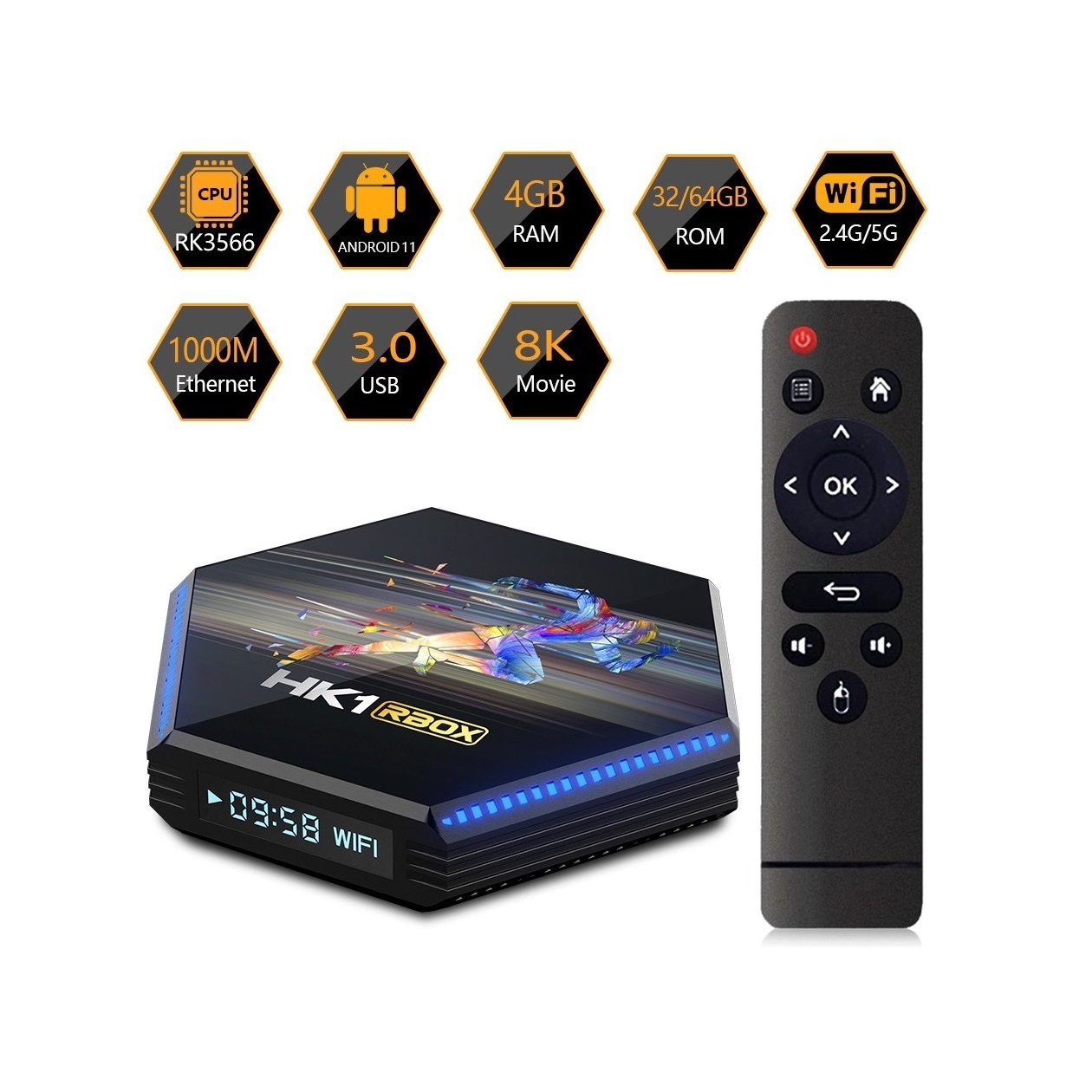

HK1 RBOX R2 network set top box RK3566 Android 11 8K HD network player TV BOX

Specifications

◆Chipset

RK3566 Quad-Core 64bit Cortex-A55 @1.8GHz

◆GPU

Mali-G52 2EE

◆FLASH

EMMC 32G/64GB

◆SDRAM DDR4

4G

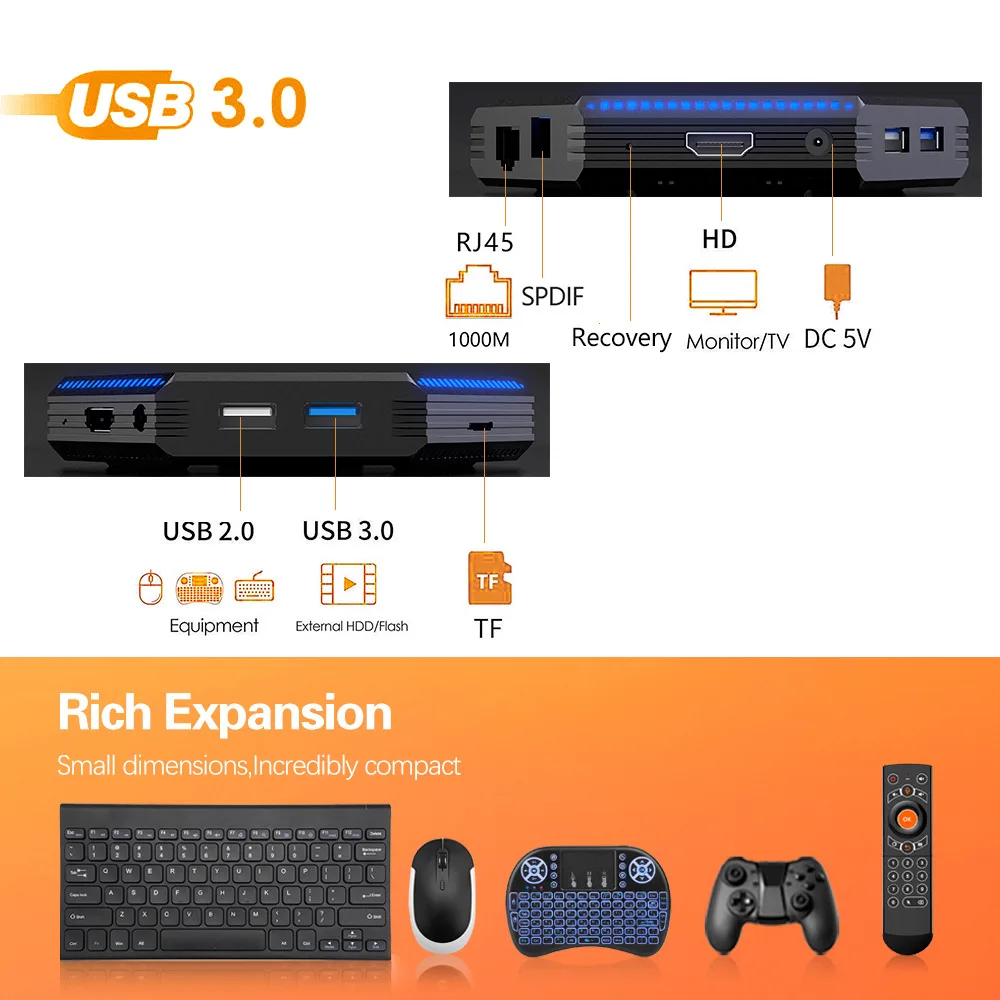

◆ USB

1 Type-A USB3.0,1 Type-A USB2.0

◆ LAN

Ethernet:10/100M/1000M standard RJ-45

◆ Wireless

2.4G /5G dual-band Wifi 802.11 a/b/g/n/ac

◆ BT

V4.1

◆SPDIF/IEC958

Optical

◆ Card reader

Micro SD cards ,Maximum support 64G

◆ DisplayPort

HD

◆ HD

HD 2.0a for 4k@60Hz

◆Power Indicator (LED)

Power ON :blue; Standby :Red

◆Remote

IR

◆ Power Supply

INPUT：100-240V 50/60HZ OUTPUT:DC 5V/2A

◆Operating temperature

﹣10℃ to 45℃

◆OS

Android 11.0

◆ Support Decoder format

H.265HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096×2304@60fps H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to
4096×2304@60fps VP9 Profile0/2 yuv420@L5.1 up to 4096×2304@60fps VP8 verision2,up to 1920×1088@60fps VC1 MPEG-4 MPEG-2 MPEG-1 up
to 1920×1088@60fps

◆ Support Media format

Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

◆ Support Music format

MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE

◆ Support Photo format

HD JPEG/BMP/GIF/PNG/TIFF

◆ HDD file system

FAT16/FAT32/NTFS

◆ Support Subtitle

SRT/SMI/SUB/SSA/IDX+USB

◆ High Definition video output

4K (4096×2160 pixel )

◆ OSD type of languages

English/French/German/Spanish/Italian/ etc multilateral languages

◆ Mouse/ Keyboard

Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

Software Specifications

◆ Network Function

KODI 18.1 ,Neflix,Vudu,Skype chatting,Picasa,Flicker,Youtube,Facebook,Online movies,etc

◆ Other feature

Free Internet searching,thousands of android applications,many kinds of games,etc.

◆ Certification

CE,FCC,ROHS

◆ Accessories

Power adaptor,HD cable,user manual ,remote

◆Option

Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle,
