Notice: This link’s price is barebone system price, doesn’t include ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.
Iwill Fanless PC Intel Celeron J1900 Industrial Computer Hardware Industrial Mini IPC X86 for POS
Pls contact me directly:( Email:joemu@iwilltech.cn, PH/WeChat:+86-18133362508)

Product Paramenters
Model
|
101Plus Industrial computer
|
Case Color
|
Silver(Color can be customized)
|
Material
|
High-quality all aluminum,surface anodic oxidation
|
CPU
|
Onboard Intel Celeron J1900(Quad core quad threading,1.99GHz,TDP: 10W)
|
BIOS
|
AMI EFI BIOS
|
Display Chip
|
Integrated Intel HD Graphics
|
RAM
|
Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot,Max turbo 8GB
|
Storage
|
Support 1*MSATA Slot,1*2.5”HDD
|
Display Chip
|
Integrated Intel HD Graphics Card
|
Display Interface
|
1*HDMI,1*Built-in LVDS (Support synchronous and asynchronous dual display)
|

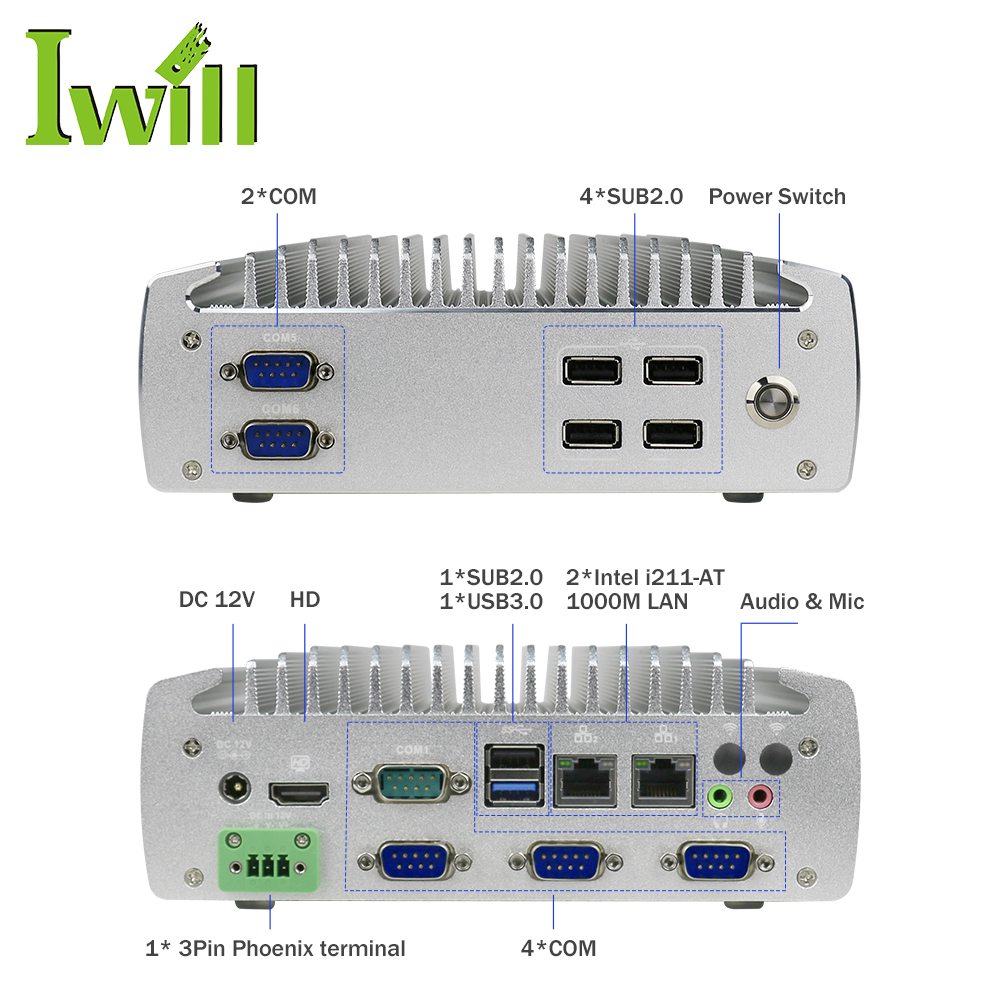

Front I/O
|
4*USB2.0,2*COM,1*Power Switch
|

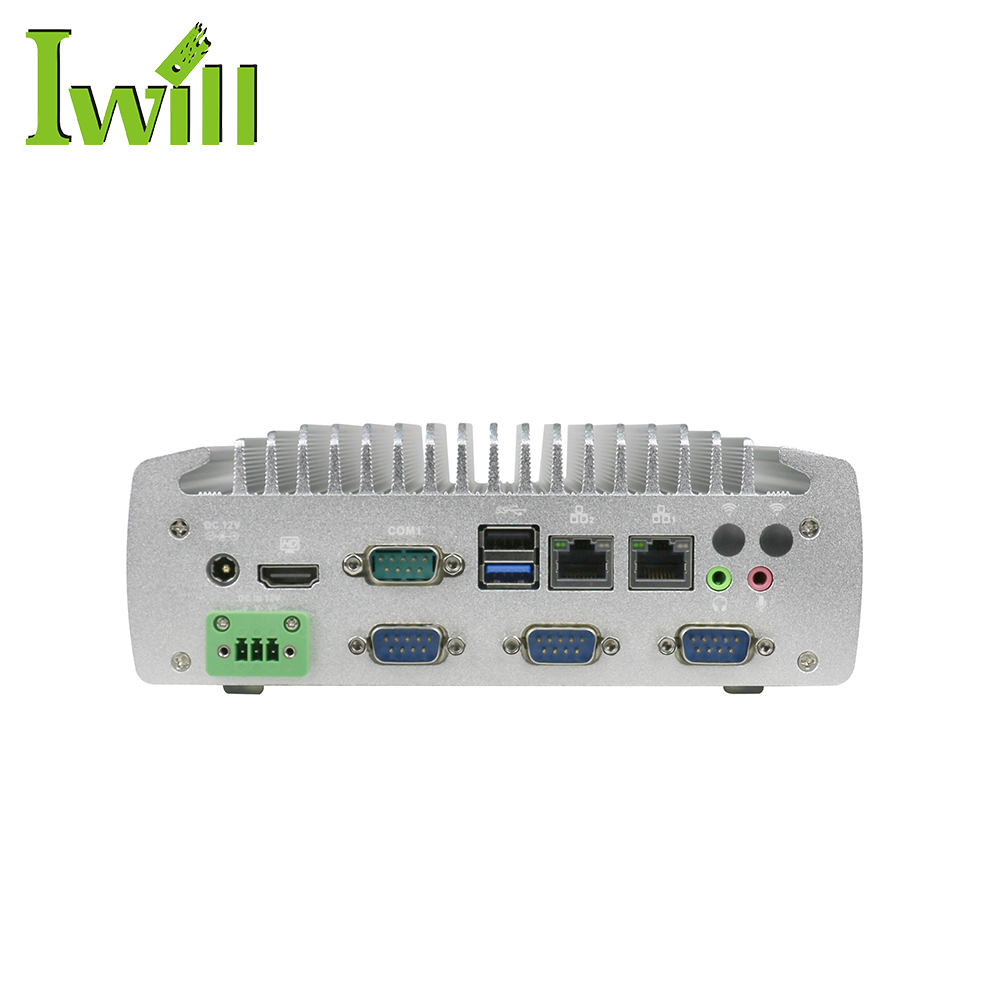

Rear I/O
|
1*USB3.0,1*USB2.0,4*COM(COM1、COM2 RS232/485 Optional),1*3PIN Phoenix connector
|
Network Card
|
2*Intel i211-AT 10/100/1000M lan
|
Expansion
|
Support 1*MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot
|
Support 1*Mini-PCIE (support Wifi/BT/3G/4G Optional), External SIM card slot
|
|
Other Function
|
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
|
Network
|
2*Intel i211-AT 1000M LAN
|
Power Supply
|
Support DC 12 Input(DC 9 ~ 36V wide voltage Optional)
|
Work Temp
|
0℃ ~ +40℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow
|
Work Humidity
|
5% ~ 95% non-condensing
|
Cetificates
|
CE, CCC, FCC Class A, ROHS
|
Dimension
|
186 * 150 * 66 mm (L*W*H);
|
Net Weight
|
1.6 kg【not include wall bracket】
|
Application
|
Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
|

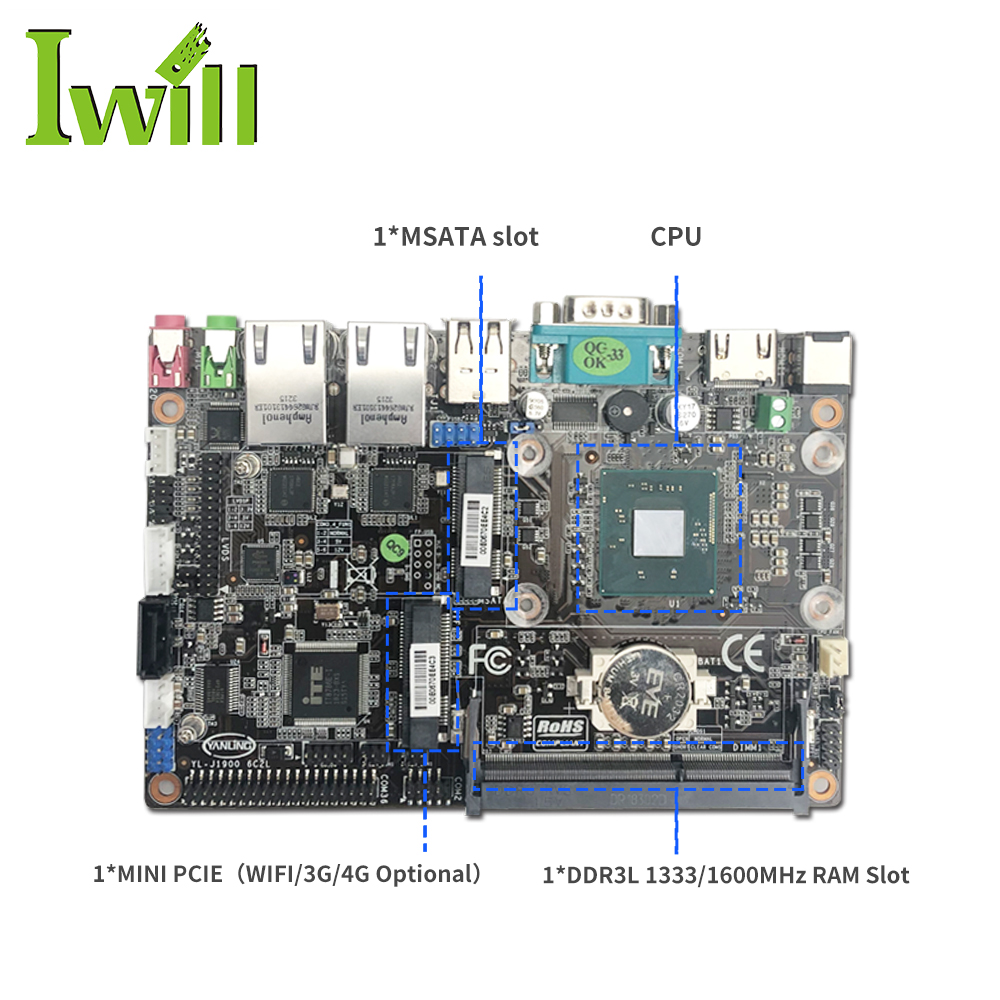

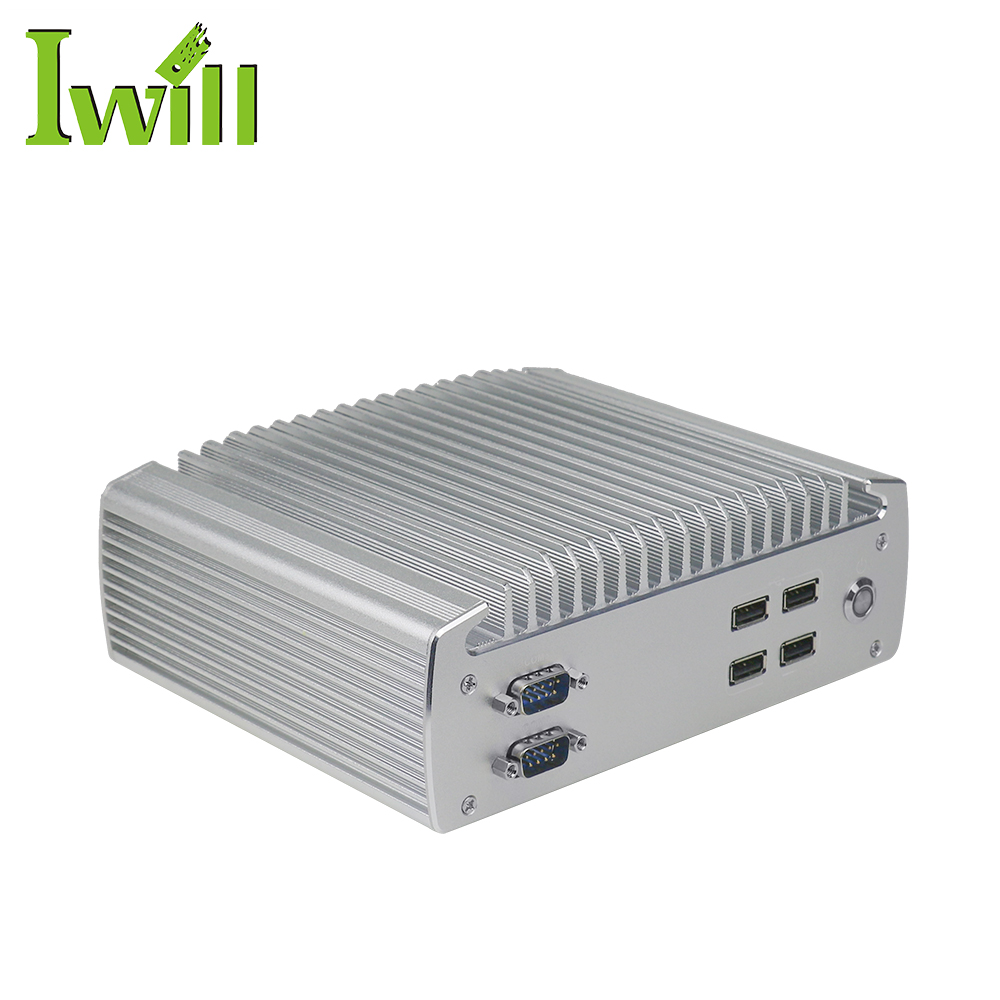

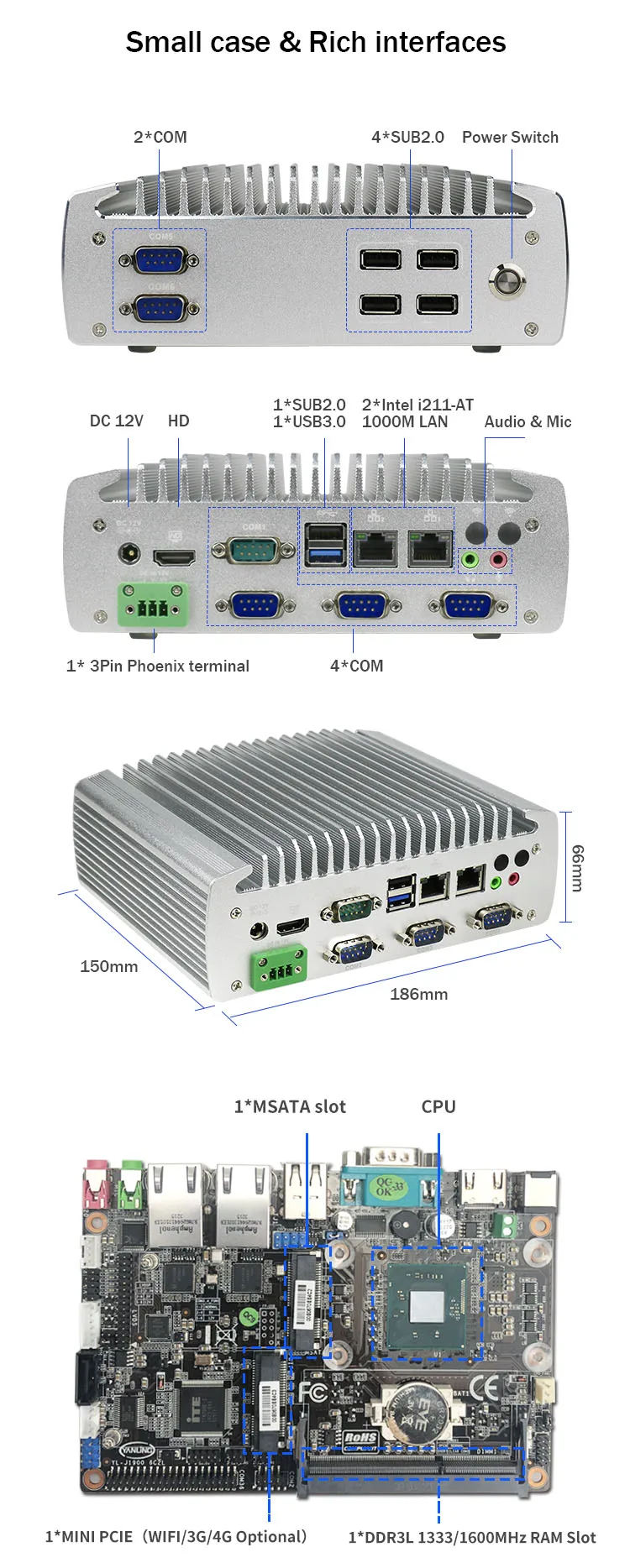

Details Images





Packing & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.

Company Profile
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design,producing, processing, marketing and distribution. Main products cover mini PC, HTPC,embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.

IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.

IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.

Certifications

Our Services & Strength
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.

FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
