Gtmedia V7 S2X Support PowerVu Biss Cccamd AVS+ ,H.265 FTA Decodificator support iks latin iptv ,HD digital satellite receiver
$56
Product Description
Upgrade version of GTmedia V7s HD ,GTmeia V7S2X New in stock!
Function:
1. Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI.2.Support BISS auto roll, Full PowerVu, DRE &Biss key.3.Support Unicable,
DiSEqC1.0/1.1/1.2/USALS Motor fully support.4.Support Full speed USB 3/4G dongle and USB wifi dongle.5.Support Online Movie
(Youtube,Youporn).6.Support Cccam, Newcam.7.Technical support website : www.freesat.cn
1. Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI.2.Support BISS auto roll, Full PowerVu, DRE &Biss key.3.Support Unicable,
DiSEqC1.0/1.1/1.2/USALS Motor fully support.4.Support Full speed USB 3/4G dongle and USB wifi dongle.5.Support Online Movie
(Youtube,Youporn).6.Support Cccam, Newcam.7.Technical support website : www.freesat.cn
Specification
|
item
|
value
|
|
Certification
|
ce
|
|
Place of Origin
|
China
|
|
Brand Name
|
Gtmedia
|
|
Model Number
|
V7S2X
|
|
FTA(Free To Air)
|
Yes
|
|
Type
|
Digital
|
|
High Definition
|
Yes
|
|
Fta (free To Air)
|
Yes
|
|
Support
|
IPTV
|
|
Decoding Format
|
H.265
|
|
Feature
|
CCCAM/NEWCAM/PATCH
|
|
Function
|
ACM
|
|
Support2
|
PVR ,Youtube
|
|
GTMEDIA V7S2X HD (DVB-S/S2/S2X)
|
|||||||||||||||
|
Highlight
|
1. Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI
|
||||||||||||||
|
2.Support BISS auto roll, Full PowerVu, DRE &Biss key;
|
|||||||||||||||
|
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
|
|||||||||||||||
|
4.Support Full speed USB 3/4G dongle and USB wifi dongle,
|
|||||||||||||||
|
5.Support Online Movie (Youtube,Youporn);
|
|||||||||||||||
|
6.Support Cccamd, Newcamd;
|
|||||||||||||||
|
7.Technical support website : www.freesat.cn
|
|||||||||||||||
|
Note: We reserve the right to change the design and OEM/ODM supported
|
|||||||||||||||
|
Main Chip Sets
|
CPU frequency
|
550MHz Dual Core
|
|||||||||||||
|
Flash Memory
|
64MB SPI Flash
|
||||||||||||||
|
DDR2 Memory
|
512M RAM
|
||||||||||||||
|
TS Demux
|
Demultiplexer
|
ISO/IEC 13818-1
|
|||||||||||||
|
Input Bit Rate
|
Max 100Mbit/s
|
||||||||||||||
|
Video Decode
|
Video Decode
|
HEVC main profile@level 4.1 and main10 profile@L4.1,High tier
MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder |
|||||||||||||
|
PAL/NTSC
|
Automatic PAL/NTSC conversion
|
||||||||||||||
|
Aspect Ratio
|
Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
|
||||||||||||||
|
Video Resolution
|
1080P, 1080I, 720P, 576P, 480P, 576I, 480I
|
||||||||||||||
|
Audio Decode
|
Audio Decode
|
MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,
Dolby AC3/AC3+, DRA CH/5.1CH |
|||||||||||||
|
Sound Mode
|
LEFT/RIGHT/STEREO/MONO
|
||||||||||||||
|
Sampling Frequency
|
32KHz,44.1KHz,48KHz
|
||||||||||||||
|
Hardware specifications
|
Panel display
|
4-digit LED display
|
|||||||||||||
|
LED Indicator
|
Power ON :Green; Standby :Red
|
||||||||||||||
|
Button
|
NC
|
||||||||||||||
|
Wifi
|
Support USB Wifi dongle (MTK7601/RT5370)
|
||||||||||||||
|
IR
|
Exit IR for 38KHz,Infra Remote control
|
||||||||||||||
|

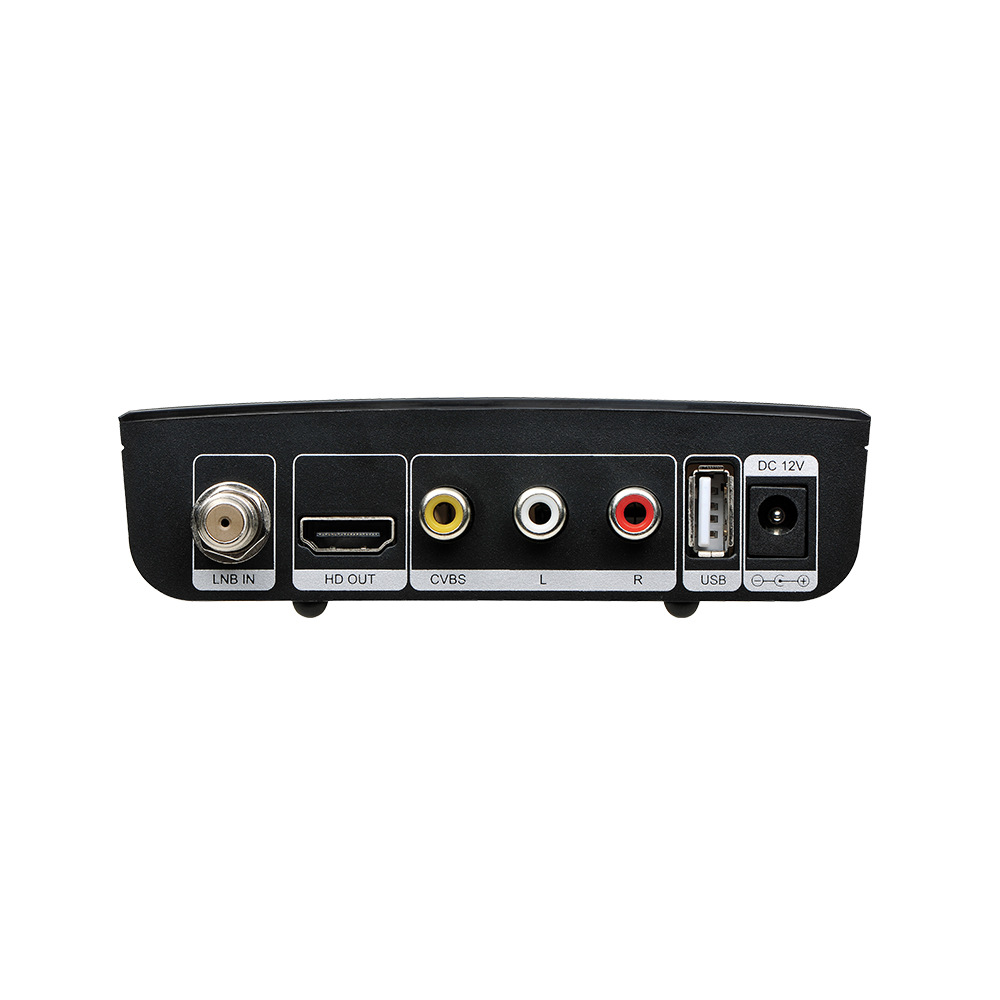

Rear Panel
|
LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2/S2X)
|
||||||||||||||
|
HD OUT (up to 1080P)
|
|||||||||||||||
|
RCA*3 (AV OUT)
|
|||||||||||||||
|
2*USB 2.0 HOST
|
|||||||||||||||
|
Power (DC 12V/1.2A)
|
|||||||||||||||
|
DVB-S/S2 Tuner specificati-ons
|
System standard
|
ETS 302 307
|
|||||||||||||
|
Frequency Range
|
950~2150MHz for DVB-S/S2/S2X
|
||||||||||||||
|
LNB Power and Polarization
|
DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection
|
||||||||||||||
|
Input Level Range
|
-80dBm ~ -25dBm
|
||||||||||||||
|
Symbol Rates
|
DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
||||||||||||||
|
Forward error correction rate
|
1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
|
||||||||||||||
|
Carrier frequency acquisition range
|
±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
|
||||||||||||||
|
Symbol Rates
|
2 ~ 90MSPS(Code Rate 1/2)
|
||||||||||||||
|
Code Rates
|
1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates |
||||||||||||||
|
ANT. Connector
|
Connector:IEC TYPE F Input Impedance:75 Ω
|
||||||||||||||
|
Sortware Features
|
Standard
|
Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite)
|
|||||||||||||
|
Channels Number
|
5000+ channels TV and Radio programmable
|
||||||||||||||
|
Favorites
|
16 different favorite groups selection
|
||||||||||||||
|
OSD Language
|
OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German,
Italian, Persian, Thai) |
||||||||||||||
|
EPG
|
Fully support to 7 days Electronic Program Guide(EPG)
|
||||||||||||||
|
OSD Color
|
16-bit OSD with anti-flickering
|
||||||||||||||
|
Channel Search
|
Supports Automatic network search for newly added transponders
|
||||||||||||||
|
Channel Edit
|
Various channel editing function(favorite,move,lock,skip,
delete,rename,find,sort) |
||||||||||||||
|
Parental Ctrl
|
Parental control for channels
|
||||||||||||||
|
Easy Menu
|
Plug and Play installation, with an easy to use Menu System
|
||||||||||||||
|
SoftUpgrade
|
Software upgrades through USB port upgrade.
|
||||||||||||||
|
Channel
|
Recording one channel, can view another channel under the same TP,Various channel editing
function(favorite,move,lock,skip,delete,rename,find,sort) |
||||||||||||||
|
Subtitle
|
support DVB EN300743 and EBU
|
||||||||||||||
|
Teletext
|
support DVB ETS300472 by VBI and OSD
|
||||||||||||||
|
Time Set
|
Time set by GMT offset automatic and manual,Summer Time support
|
||||||||||||||
|
Timer
|
5 event timers,off/Once/Daily/Weekly Mode
|
||||||||||||||
|
USB Decode
|
USB 2.0
|
Support FAT/FAT32/NTFS big capacity hard disk
|
|||||||||||||
|
PVR Option
|
USB 2.0 for PVR,TIMESHIFT,media files playback
|
||||||||||||||
|
Media Codec
|
TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
|
||||||||||||||
|
Audio Codec
|
WMA,MP3
|
||||||||||||||
|
Photo Codec
|
JPG, BMP, PNG, GIF
|
||||||||||||||
|
Packing
|
Product Dimension
|
120*105*33mm （L*W*H）
|
|||||||||||||
|
Packaged Size
|
205*175*52MM
|
||||||||||||||
|
Carton Size
|
610*295*375MM—30pcs/ctn
|
||||||||||||||
|
Unit Weight
|
0.46 Kg with gift box
|
||||||||||||||
|
Carton Qty&Weight
|
40 pcs/Carton, 14.5 kgs optional
|
||||||||||||||
|
Accessories
|

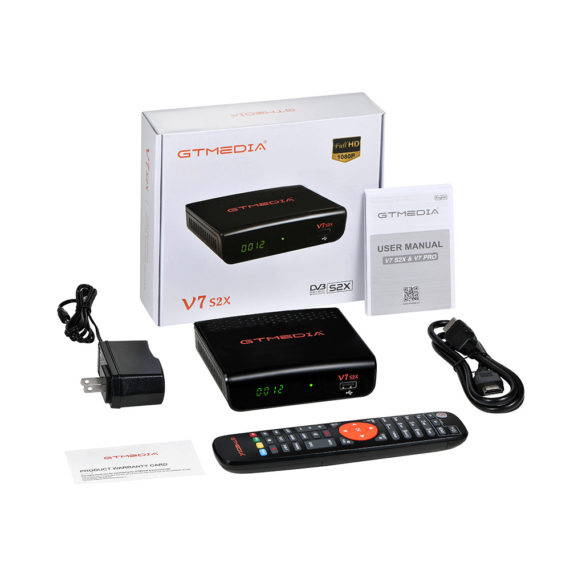

Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card
|
||||||||||||||
|
Physicals
|
Power Supply
|
AC 100-250V,50Hz/60Hz
|
|||||||||||||
|
Power Consumption
|
8W in operation
≦1 W Standby Power Mode |
||||||||||||||
|
Temperature
|
Operation 0～+45℃; Storage -10~+60℃
|
||||||||||||||
|
Humidity
|
20~90%, non-condensed
|
||||||||||||||
Company Profile
Shenzhen Maizhisheng Technology Co.,ltd is an international Company Located in Shenzhen and Have SubBranch in Chile .We are a Creative Young Team focused on Developing and Producing HomeEntertainment Products ( Set Top Boxes and Related )
Our Mission is Providing OEM Services with Small Order Quantity To Save Customer's Time and Money .
Our Business Concept is Using professional talents to create a supply chain with a dedicated attitude to provide customers with quality products and services.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to South America(30.00%),Mid East(15.00%),Northern Europe(10.00%),Southeast Asia(10.00%),North America(10.00%),Southern Europe(5.00%),Africa(5.00%),Western Europe(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.
We are based in Guangdong, China, start from 2019,sell to South America(30.00%),Mid East(15.00%),Northern Europe(10.00%),Southeast Asia(10.00%),North America(10.00%),Southern Europe(5.00%),Africa(5.00%),Western Europe(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Set Top Box,Smart Remote Control,Home Entertainment,Android TV Box,Mini Projector
4. why should you buy from us not from other suppliers?
Shenzhen MaiZhiSheng Technology Co.,ltd is an international Company L ocated in Shenzhen and Have SubBranch in Chile .We are a Creative Young Team focused on Developing and Producing HomeEntertainment Products ( Set Top Boxes and Related )
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish
Additional Information
| Plug Type | US PLUG, EU Plug, UK Plug |
|---|---|
| Color | Black |
