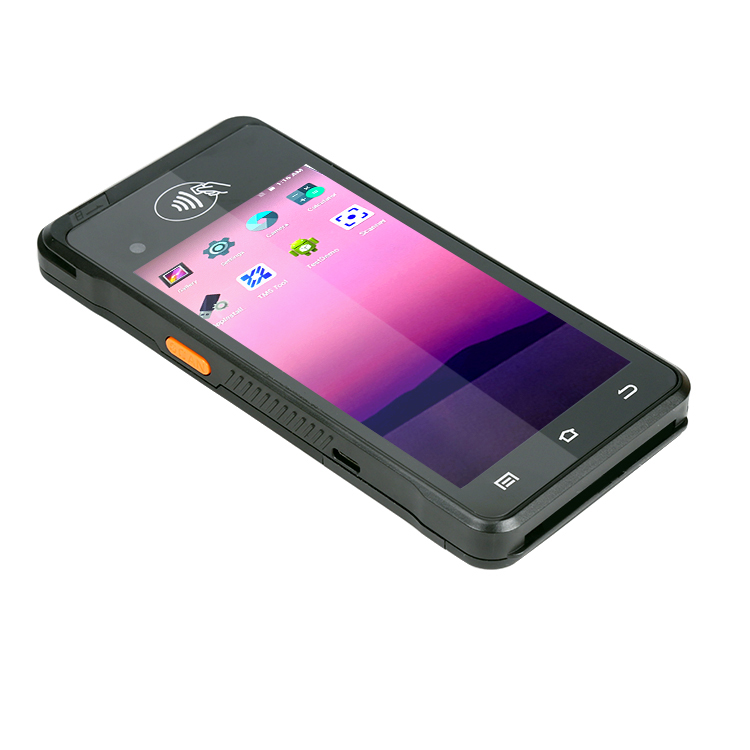

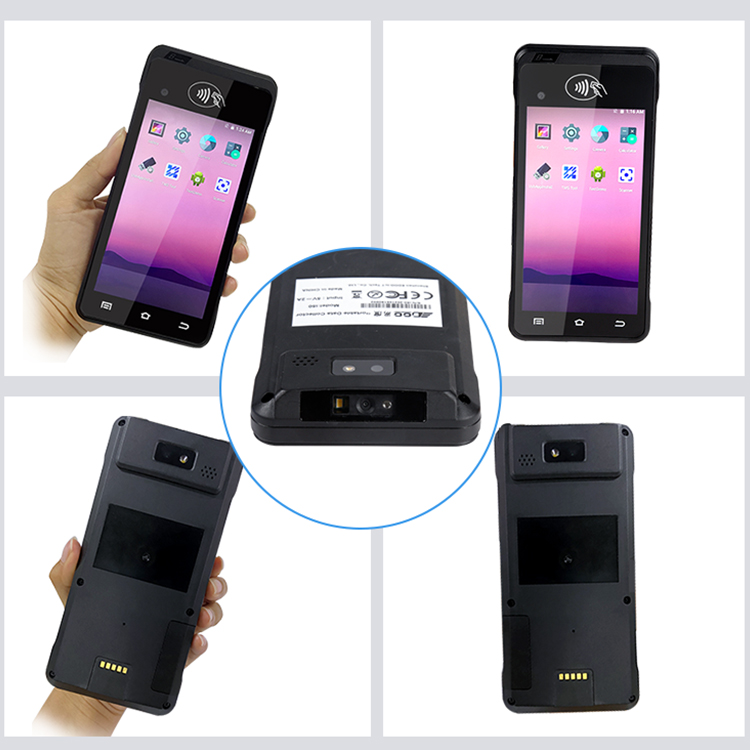

5.5 Inch Touch Screen Android Handheld Mobile Terminal Pda 1D 2D QR PIN Reader pdas payment pos system with printer

5.5 Inch Touch Screen Android Handheld Mobile Terminal Pda 1D 2D QR PIN Reader pdas payment pos system with printer


Application scenario
Logistics and express delivery, warehousing management, chain retail, food traceability, medical and health, distributor management, manufacturing, asset inventory, etc.


ARM Cortex-A7 4 core CPU
ARM 32 bit micro-processor
1G RAM and 8G ROM Flash(Extendable 2G RAM and 16G ROM Flash)
Operation System
Android 7.X secure payment system
5.0 inch IPS screen,resolution 1280*720
Extended Storage
1x Micro SD card interface,maximum 32GB


Built-in PINPad
Be compatible with ANSI X9.8/ISO9564,ANSI X9.9/ISO8731 specification
Support the protection technology of Master Key/Session Key,Fixed,DUKPT
Support the algorithms of DES,3DES,RSA,SHA-256 and AES
Capacitive touch screen, support the electronic signature
IC card reader
1pcs,be compatible with ISO7816,PBOC3.0 and EMV LEVEL 1&2 specification
magnetic Card Reader
Support ISO7811 1/2/3 magnetic card, two-way card swiping
Contactless Card reader
Support ISO/IEC 14443 Type A&B,MiFare ONE card, be compatible with qPBOC,EMV, PAYPASS and PAYWAVE specification
Rear camera
5 million pixels, flash, AF, containing 1 d / 2 d barcode fast recognition algorithm (optional)
Front-facing Camera
0.3 million pixel, fixed focus, including 1 d / 2 d barcode fast recognition algorithm (optional)
Barcode Reader
Built-in barcode reading module (optional)
2D Code(Optional)
2D PDF417, QR Code, Micro QR,Data Matrix
1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93,
UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey,
MSI-Plessey, etc.
Physical Interface
1pcs Type C interface, can do virtual serial port, with OTG function
1pcs PSAM booth comply with ISO7816
2pcs SIM for identification recognition in wireless communication network
Indicator light
4x indicating lights (according to the definition of Unionpay standard)
Multi Media
The built-in buzzer, speaker
Built-in GPS, and support A-GPS, compass system

Support 1080P video playback
Support 720P video recording
Standard configuration 2000 mAh / 3.7 V
Communication Means
4G netcom, be compatible with 3G and 2G
Wi-fi network communication, support hot spots
wireless communication

Power Supply Adaptor
Input:AC 100V~240V–50/60Hz/0.5A
Output:DC 5V/1A(Optional)
General Type C interface
Environmental adaptability
Operation Temperature:0℃~50℃
Storage Temperature:-20℃~70℃
Relative Humidity:10%~90% non-condensing
A professional and experienced barcode scanner and PDA provider
Edoo-IoT Technology is an IoT exporter and manufacturer located in Shenzhen, China. We can provide 1D & 2D barcode scanners, 1D &2D image barcode scanners, wired hand-held barcode scanners, wireless hand-held barcode scanners, barcode scanning engines/modules, wearable ring barcode scanners, fixed mount scanners, desktop scanners, other scanning devices and technicalservices. Our company also offers an organic supplement with barcode scanner to meet more different needs. Our products can quickly and precisely read the distorted, damaged, dirty, poor printed barcodes, which on the paper, screen, glass, metal material.
